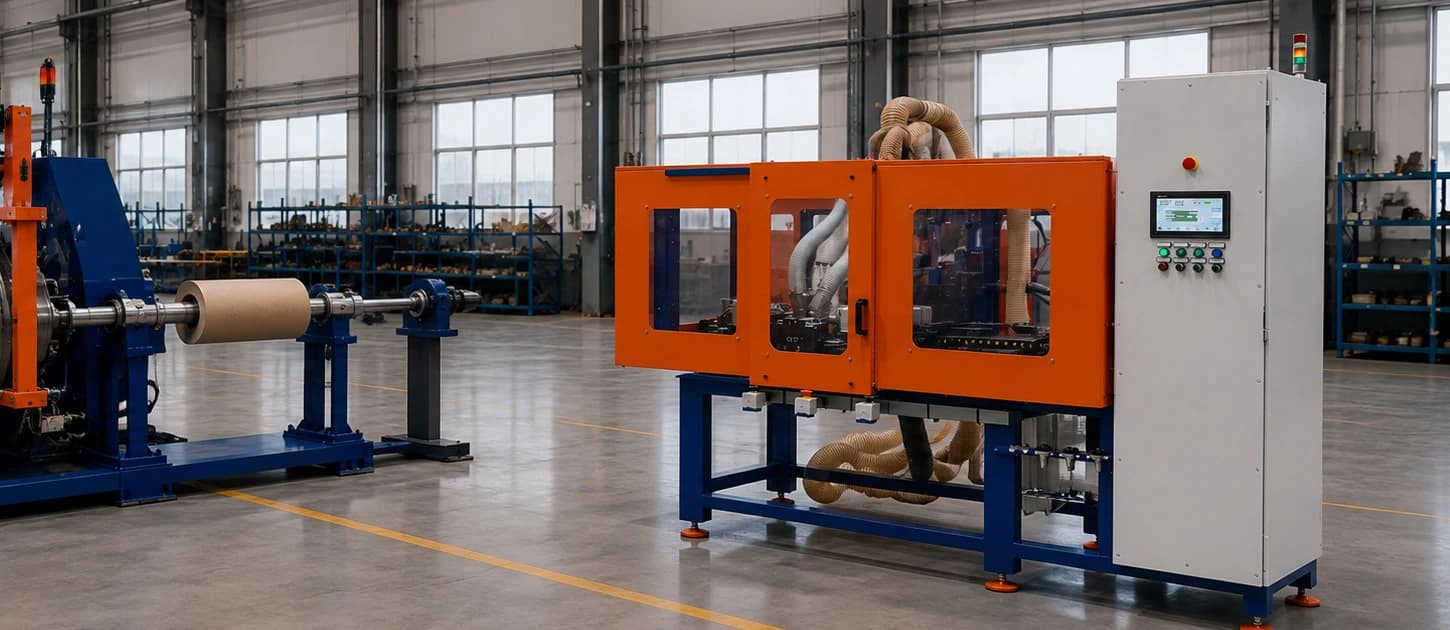

Spacer Milling
Machines
High-precision pressboard spacer milling machines engineered for transformer insulation component production, delivering accurate slot machining, repeatable quality and efficient manufacturing.
Accurate spacer production for transformer winding applications.
Spacer milling machines are designed for manufacturing pressboard spacer components used in transformer coil winding applications.
The machine enables accurate slot machining on spacers of varying dimensions while maintaining excellent repeatability and production consistency.
Easily replaceable tooling and adjustable depth control provide flexibility for different transformer designs and insulation component requirements.
Built for insulation component manufacturing
Pressboard Spacer Production
Transformer Coil Components
HV Transformer Manufacturing
LV Transformer Manufacturing
Spacer Slot Milling
Insulation Workshops
Transformer Factories
Custom Spacer Production
Engineered for precision machining
Spacer Assembly Holder
Horizontally Moving Cutting Table
Adjustable Depth Control
Replaceable Blade Mechanism
Linear Rail Motion System
Ball Screw Drive
High Precision Slot Milling
Fast Tool Change Capability
Flexible Spacer Dimensions
Stable cutting performance and repeatable accuracy.
A specially designed spacer holder aligns components accurately before machining, ensuring repeatable slot positioning and dimensional consistency.
The horizontally moving cutting table operates on linear rails and a ball screw mechanism, providing stable forward and reverse machining cycles.
Adjustable depth settings and interchangeable blade systems allow the machine to process a wide range of pressboard spacer dimensions with high precision.
Production-ready milling performance
| Specification | SB-APM |
|---|---|
| Total Machine Length | 2000 mm |
| Total Machine Width | 4000 mm |
| Total Machine Height | 2200 mm |
| Packet Length (Min) | 1 mm |
| Packet Length (Max) | 500 mm |
| Spacer Thickness (Min) | 1 mm |
| Spacer Thickness (Max) | 30 mm |
| Spacer Length (Min) | 26 mm |
| Spacer Length (Max) | 300 mm |
| Spacer Width (Min) | 35 mm |
| Spacer Width (Max) | 50 mm |
| Cutting Motor | 4 kW / 12,000 RPM |
| Noise Level | 60-80 dB |
Designed for diverse spacer geometries and production needs.
Transformer manufacturers often require spacers with different slot dimensions, depths and geometries based on winding design and insulation requirements.
ISOLECT develops spacer milling solutions tailored to production capacity, spacer dimensions and machining specifications to ensure maximum manufacturing efficiency.
Flexible tooling configurations allow fast adaptation to changing product requirements while maintaining machining accuracy and process stability.
High Precision Milling
Fast Tool Change
Flexible Spacer Production
Consistent Product Quality
