Heavy-duty core stacking tables designed for transformer core assembly, tilting and positioning operations, supporting core weights from 1 ton up to 300 tons with exceptional stability and safety.
Built for large transformer core assembly operations.

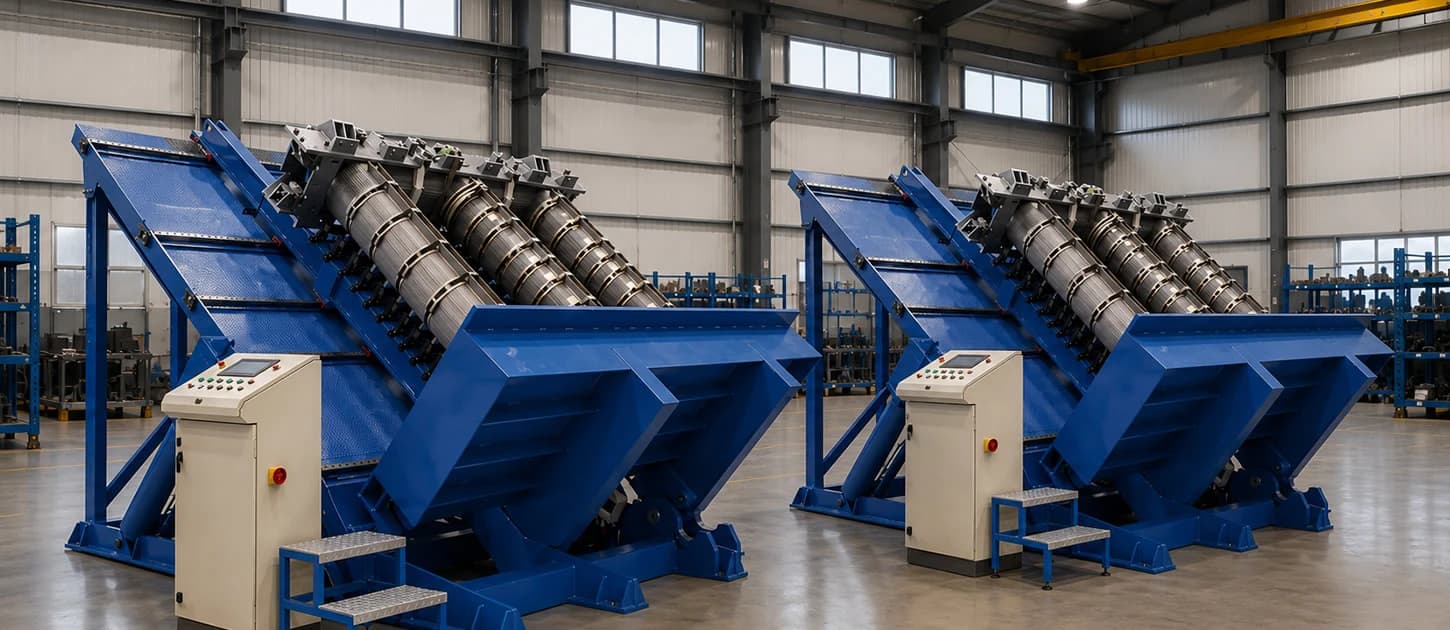

Core stacking tables are engineered for assembling, positioning and tilting transformer cores used in power and distribution transformer production.
The system supports both 3-limb and 5-limb transformer core configurations while providing maximum structural stability throughout the assembly process.
Designed as a self-supporting steel structure, the machine withstands all dynamic forces generated during core tilting and upright positioning operations.
Designed for transformer core manufacturing
Power Transformer Cores
Distribution Transformer Cores
3-Limb Core Assembly
5-Limb Core Assembly
Core Tilting Operations
Core Uprighting Operations
Transformer Manufacturing Plants
Heavy Core Production
Engineered for strength, safety and flexibility
1–300 Ton Capacity Range
3 & 5 Limb Core Assembly
Hydraulic Tilting System
Movable Limb Supports
Linear Guide Positioning
Pneumatic Braking System
Heavy-Duty Steel Construction
Automatic Core Uprighting
Integrated Safety System
Safe and efficient transformer core handling.

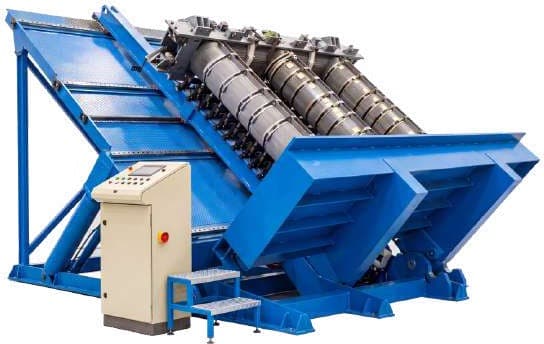

The table consists of two heavy-duty steel frame sections connected by longitudinal carriers and a fixed central limb support structure.

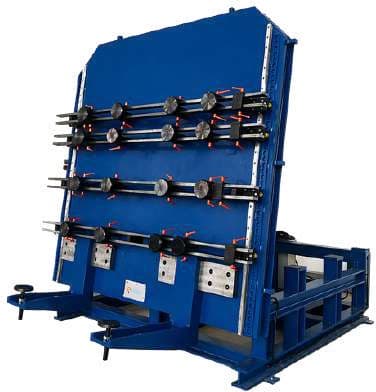

Adjustable sliding limb carriers enable precise positioning through linear guides and pneumatic locking systems, ensuring flexibility for different core dimensions.

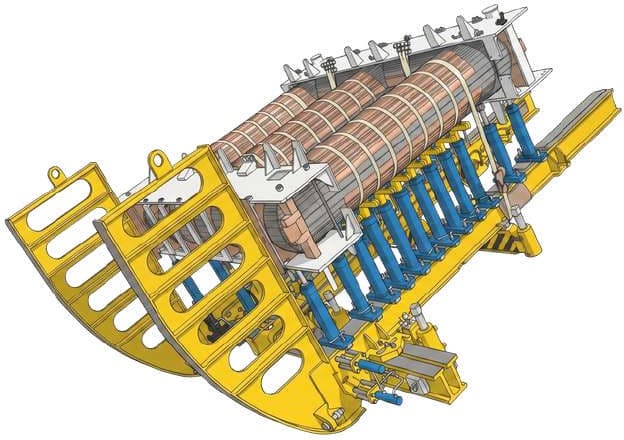

Hydraulic cylinders perform controlled tilting and uprighting operations while dedicated safety systems support the transformer core throughout the process.
Heavy-duty core assembly performance
| Specification | Value |
|---|---|
| Core Capacity Range | 1 – 300 Tons |
| Core Types | 3-Limb & 5-Limb Transformer Cores |
| Installation Type | Direct Floor Installation |
| Structure Type | Self-Supporting Steel Construction |
| Tilting System | Hydraulic Cylinder Driven |
| Positioning System | Linear Guides & Pneumatic Brakes |
| Control Method | Touchscreen Operator Panel |
| Operation Mode | Fully Assisted Hydraulic Operation |
Hydraulic control and touchscreen operation.
The machine is equipped with a touchscreen control panel that allows operators to monitor and manage all assembly and tilting operations from a single interface.
Once the transformer core assembly is completed, hydraulic cylinders and electrical control systems automatically execute the tilting and positioning sequence with a single command.
This automation minimizes operator intervention, improves safety and ensures consistent handling of heavy transformer cores.
Ergonomic access throughout the assembly process.
Hydraulic lifting platforms provide safe and ergonomic access to the transformer core as the stacking height increases during assembly.
Operators can adjust platform height through a portable control station, ensuring comfortable working conditions and improved productivity.
All platform movements are hydraulically controlled, allowing precise positioning around the transformer core during assembly operations.
Designed around your transformer core dimensions.
ISOLECT manufactures core stacking tables in custom dimensions and load capacities ranging from small distribution transformer cores to large power transformer applications.
Limb spacing, carrier arrangements, platform configurations and hydraulic systems can be adapted according to customer requirements.
This flexible engineering approach ensures maximum efficiency, safety and long-term operational value.
Up To 300 Ton Capacity
Safe Core Tilting
Improved Assembly Efficiency
Ergonomic Operator Access
